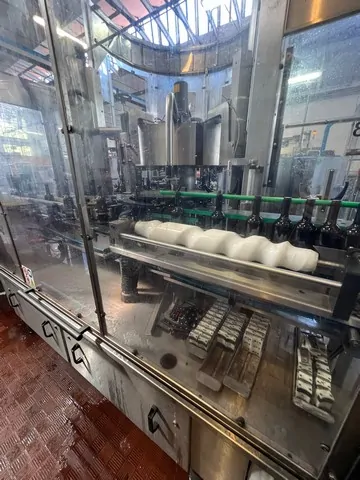

Used Bottling Line Isobaric Champagne 9.000 bph

Technical description

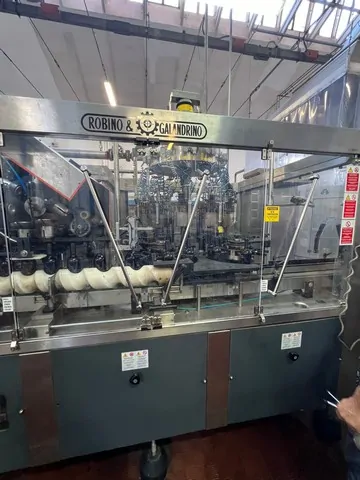

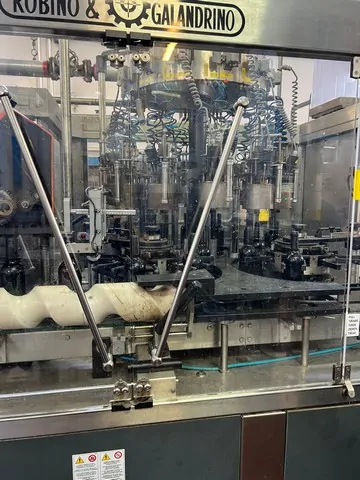

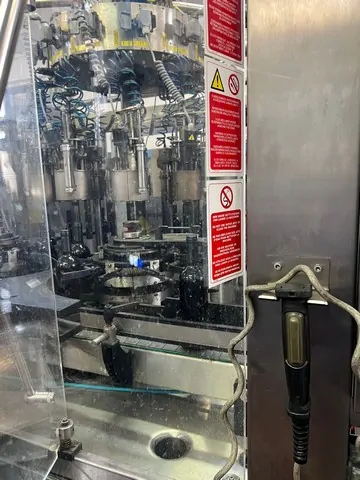

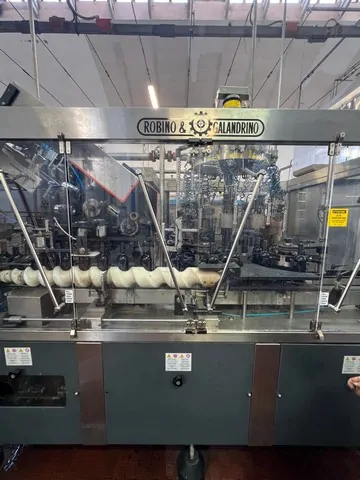

ISOBARIC LINE FOR STILL WINE AND SPARKLING WINE Speed (sparkling wine): Semi-sparkling 8500 bph of 0.75/h, sparkling wine 5500 bph of 0.75/h Speed (still wine): 9000 bph of 0.75/h Ape depalletizer: Model: Depal 2010 Year: 2016 Speed: 35 cycles/hour Type of push operation Pallet magazine Pad removal system Processed pallet size: Width min 1000 mm – max 1000 mm Min length 1200 mm – max 1200 mm Empty pallet height min 140 mm – max 200 mm Triblock Virmauri Model: Cheope 32/48/6/6 Year: 2000 Direction of rotation: clockwise Rinser 32 clamps Electric carousel height adjustment with button Fixed nozzle 2 treatment Filler 48 filling valves Tank height adjustment: electric with button with anchor Hand vent Isobaric filling Type of valve: mechanical Valve Functions: Degassing Capper 1 6 heads Type of workable cork: level cork and mushroom Cap size: Ø 30.5 mm x 48 mm – Ø 24 mm x 38 mm Height adjustment of the head: electric with button Capper 2 Type of workable cap: Stelvin Cap size: Ø 30 mm x 60 mm Caps elevator Neri Model: Alfe CB Year: 2015 Type of caps supported: mushroom – Natural straight cork Caps elevator Nortan Type of caps: Stelvin Capper 3 Bertolaso including elevator and cap orientator (external to the monoblock): Model: Kappa 605 Year: 1996 Number of heads: 5 Height adjustment: electric Type of workable cap: plastic mushroom cap Cap size: Ø 33 mm x 40 mm Pasteurizer Padovan: Model: Past. Tunnel Type of heating: water rain Steam Heat Exchanger Europool drying tunnel: Model: TE 02 Year: 2014 Dryer air blade Wirehooder Robino & Galandrino Model: Record 14000 Number of heads: 12 teste Type of cage: 4-wire Long Range Distributor Capsuler Robino & Galandrino: Model: Monostadio Z 12 T 12 Thermal Heads – 12 interchangeable pneumatics Head adjustment: automatic Capsule type: PVC and aluminum Universal clamps Storage capsules long range Labeller PE: Model: Modular SM Direction:Counterclockwise Electric head adjustment 12 Electronic cam plates Number of stations: 5 and 1 (3 cold glue and 3 adhesive) Number of Applicable Labels: 5 Case erector Cima: Model: CCH/2V Year: 2004 Type of closure: hot glue Case Packer Ape: Model: Incarobot Year: 08/2014 2 heads 12 grips Adjustable per head Works 4 boxes of 3×2 or 2 boxes of 4×3 Weighs boxes Logiweight: Model: C4101 Year: 2019 Case Sealer Cima: Closure: above Palletizer Ape: Model: Pal 3010 Speed: 1.5 Layers/minute Type: Push Pallet warehouse General information: bottle diameters: 70 mm , 75 mm , 81 mm , 87 mm , 89 mm , 107 mm Safety protections
