Used Filling Monoblock Fimer 12.1.12.1 sva

Technical description

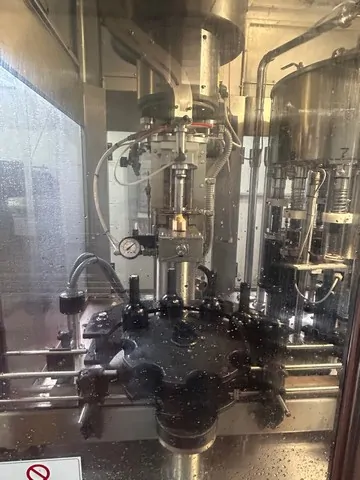

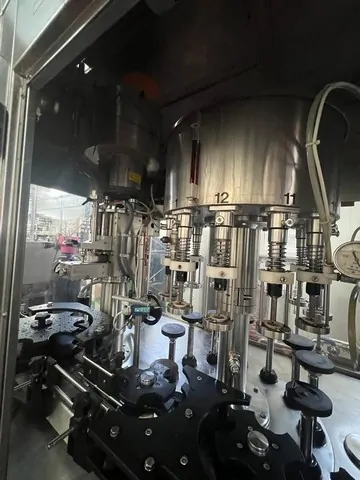

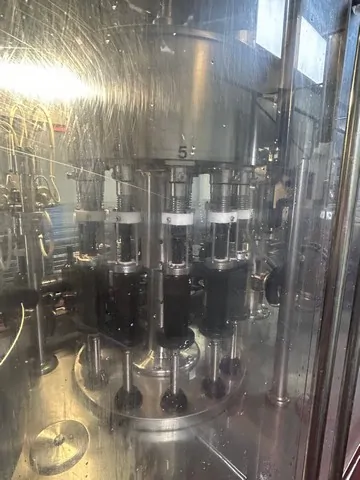

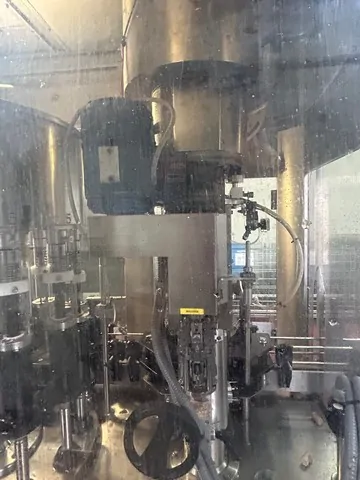

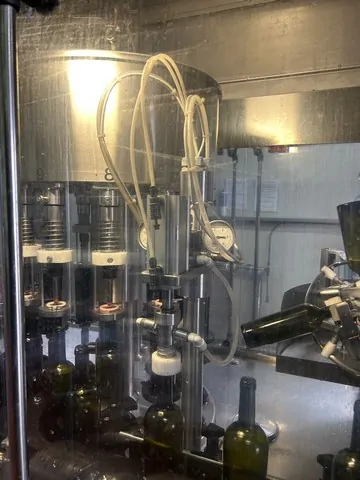

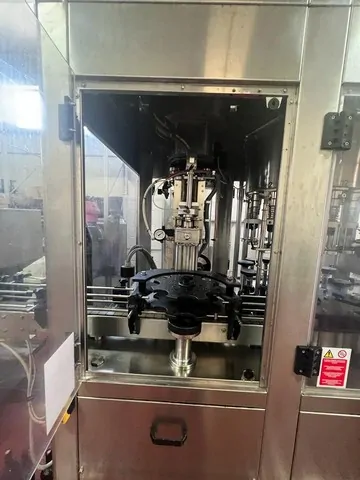

Used Filling Monoblock Fimer 12.1.12.1 sva: Model: SDRT 12.1.12.1 SVA Year: 2013 Speed: 2500 BPH Counterclockwise direction Suitable For glass bottles Height adjustment of carousels machines: Electric rinser – Manual filler – Manual capper RINSER 12 clamps Fixed nozzle 1 treatment Type of treatments: Water or air or gas Vacuum system and inert gas injection before filling FILLER 12 Valves Filling type: Gravity and light depression Valve type: mechanical CAPPER Equipped with rotating capping turret 1 head for flat cork 1 head for Stelvin cork Flat cork stopper measurements: – Ø 24 mm h 44 mm – Ø 26 mm h 42 mm – Ø 24 mm h 38 mm – Ø 24 mm h 49 mm Vacuum system before corking with flat cork Bottle diameter measurements supported: Ø 80 mm; Ø 84 mm; Ø 88 mm; Ø 100 mm Accident prevention protections Machine dimensions: 3700 mm x 1500 mm x 2650 mm (h)
