Description and technical details

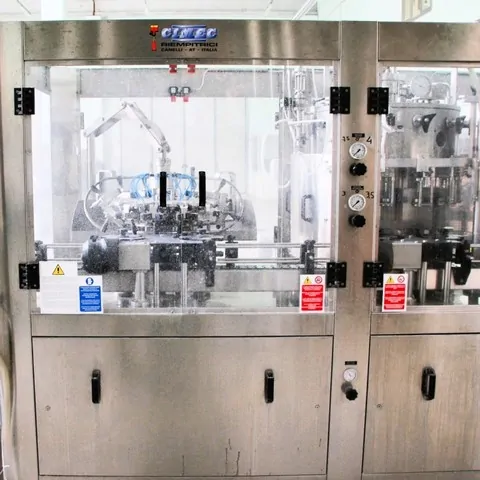

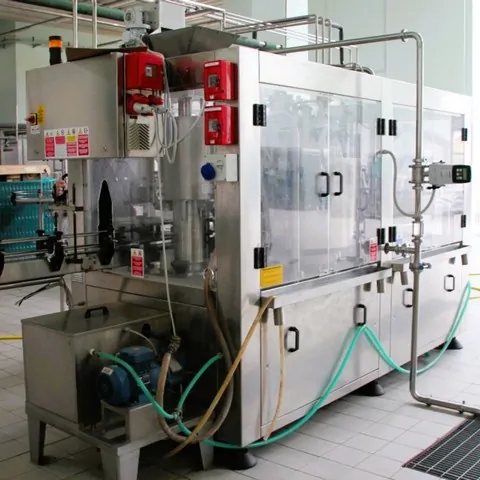

Filling Monoblock Cimec am dpsl 12.12.1c isobaric
Used Filling Monoblock Cimec am dpsl 12.12.1c isobaric:
Model: AM DPSL 12/12/1C
Year: 2003
Speed: 2500 BPH with 0.33 l bottles
Directions: Clockwise
Suitable for glass bottles
RINSER
Number of clamps: 12
Carousel with height adjustment: electric
Fixed nozzle
Single treatment
Type of treatment: water

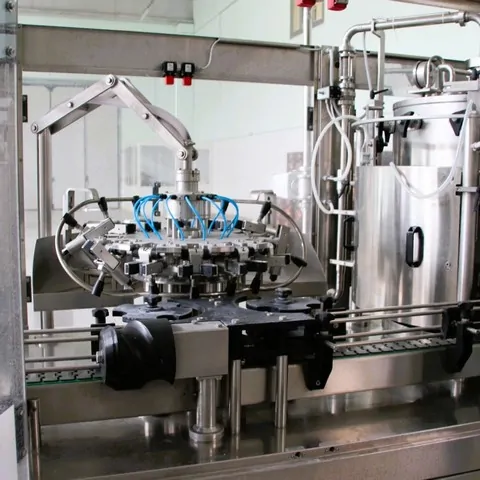

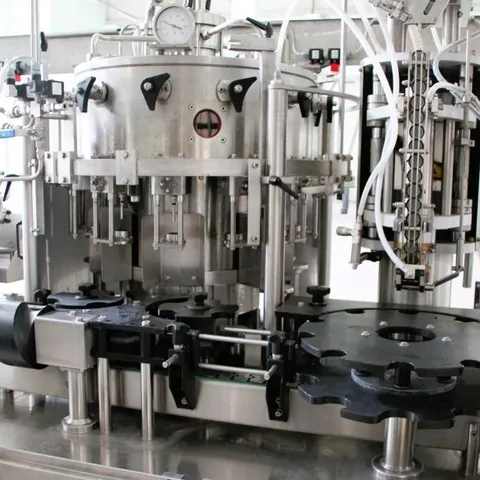

FILLER
12 valves
Manual tank height adjustment
Filling type: isobaric
Valve type: mechanical
Valve functions: degassing; auto level; double pre-evacuation

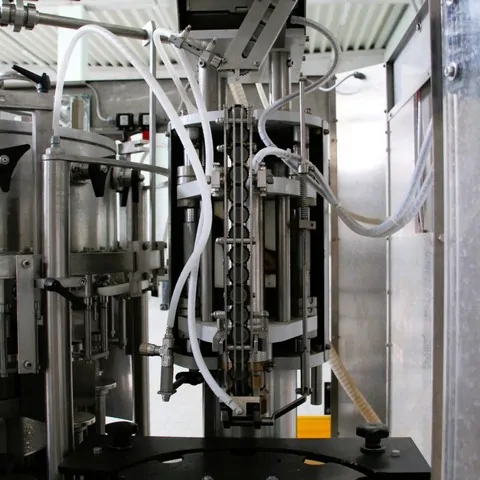

CAPPING MACHINE
Single-head
Suitable for crown corks 26 mm
Manual head height adjustment
GENERAL DATA
Bottle sizes supported:
– Minimum Ø 50 mm
– Maximum Ø 110 mm
– Minimum bottle height 180 mm
– Maximum bottle height 350 mm
Machine dimensions-dimensions: 3430 mm x 1520 mm x 2540 mm
Safety protections
Technical data is synchronised from BottlingScout. Configuration, condition and performance must be confirmed before purchase.
flexibility across products, containers and closures
What to verify for this project
For multi-product beverage companies, evaluate this machine in relation to flexibility across products, containers and closures. Confirm configuration, condition and performance for the destination market: worldwide beverage manufacturing.
