Used Complete Bottling Line KHS 36.000 bph

Technical description

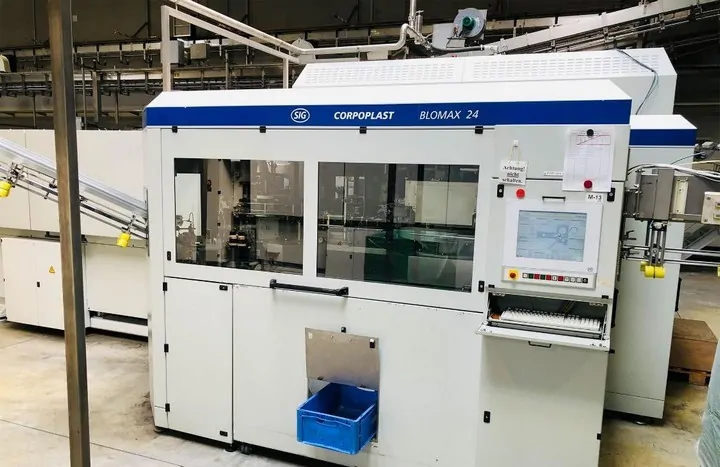

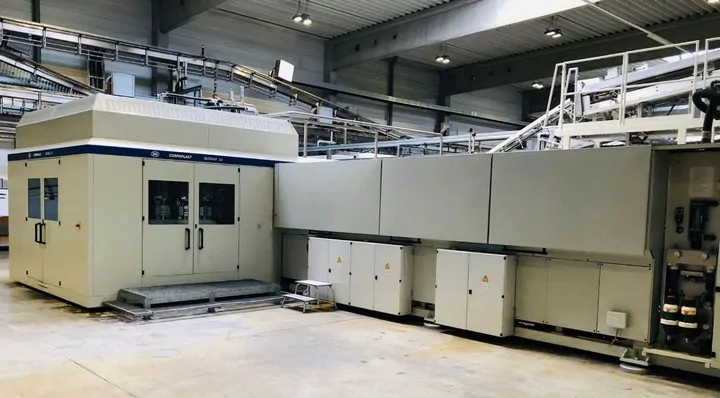

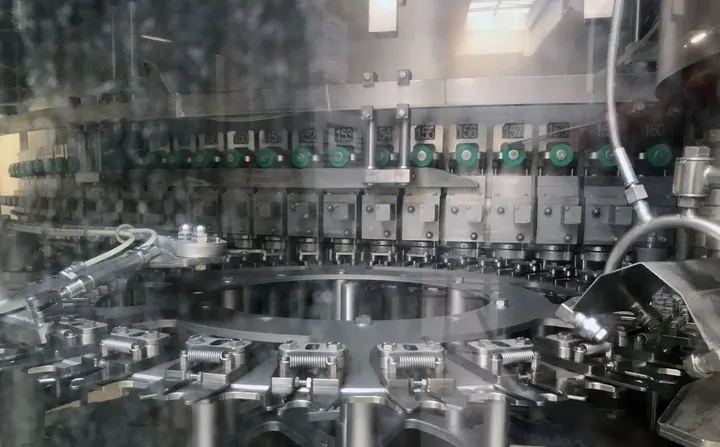

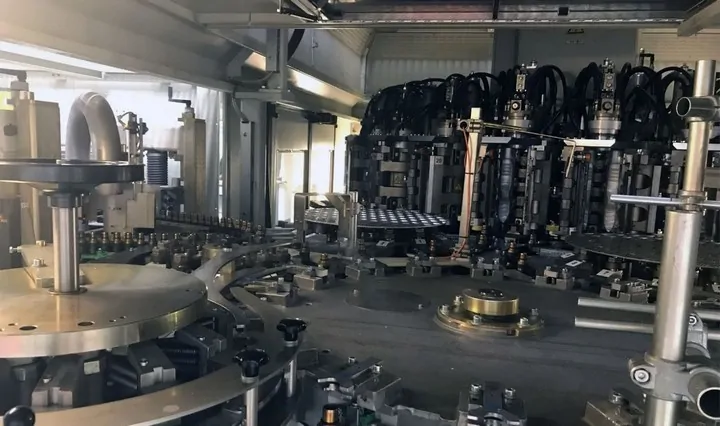

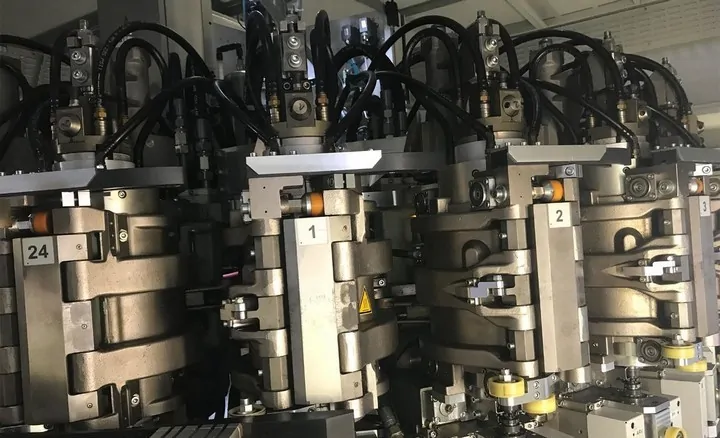

Used Complete Bottling Line KHS 36.000 bph Make: SIG Corpoplast, KHS, Kisters, Paxona, Sacmi, Videojet Year: 2000 / 2001 / 2008 / 2011 / 2012 Capacity: 36.000 bottles/h at 1,5l water 35.000 bottles/h at 1,5l soft drinks – sweet 32.000 bottles/h at 1,5l soft drinks – light Closure: PCO 28-1881 Filling product: Water and soft drinks with 7,5g CO2 Packing: 3×2 bottles in shrink foil (double lane) Pallet: Europallet 1.200 x 800mm and DüDo 600 x 800mm Control Unit: ABB / Siemens Operating net: 400V / 50 Hz Availability: promptly M A C H I N E S: Blow moulder: SIG Corpoplast Blomax 24, year 2008 Rotary machine with 24 blow moulding stations Heating oven with 20 heating boxes Control Unit ABB Incl. Preform tipper MD3 (Mucki), year 2001 Incl. Preform hopper SBT, elevator HFT, preform conveyor RGTD, strapping band RFT, chute ASTK (Tanner), year 2008 Air conveyor: NTS, Mistral blower, Year 2000 Pneumatical adjustable rail, for 0,5l and 1,5l bottle, basket cable tray open Filler: KHS Innofill EV-VF, Year 2000 176 filling valves, electronic filling system, valve manifold with APV-valves Container infeed with air conveyor Hand-over with infeed worm and clamping star wheel, clean room housing with doors Screw capper (Zalkin) with 22 heads Caps from fixed chute to hand-over plate to the heads Cap feeding system NSM 2 storage positions with tipper Foam cleaning with ECOLAB, Year 2001 3 dosing units with hot steam, Year 2011 Fill lever control: KHS Innocheck CUB Vision Circle, Year 2013 Control of fill level, cap, fault coding Rejection in container or rejection table Dating: Videojet, laser coding on bottle conveyor with housing Deaeration + Mixer: KHS Innopro DX65, Contimix 65/5 -T20, Year 2000 65.000 l/h 5 components, Brix meter (Anton Paar), pumps (Hilge) Bottle conveyor: KHS Innoline BTR, Year 2000 Motordrive with frequent converter, plastic chain Closed cable duct, fixed rails Dry lubrication (CHP DLU-5000) Labelling machine: Sacmi Opera 300 RF 26T/R S1E1, Year 2012 26 bottle plates, double infeed worm, parallel clockwise, toothed belt drive, hotmelt, wrap around label from a reel Safety device lift version Label check: KHS Innocheck CUB, Year 2015 Sensor system, P.E. sensor on the labelling carrousel Rejection with pusher into container Packing machine: Kisters SP060V, Year 2000 60 cycles/min., infeed with 6 lanes 3×2 double lane, lane width manual adjustable, only foil processing transparent and printed foil Shrink tunnel, 2 zones double lane, basket conveyor, cooling unit Pack conveyor: Paxona + Schaefer, Year 2009 Double lane plastic flat top chain Pack labelling: Self-adhesive labelling from a reel to a pack (Contact 100)
