Used Complete Aseptic Bottling Line 40.000 bph

Technical description

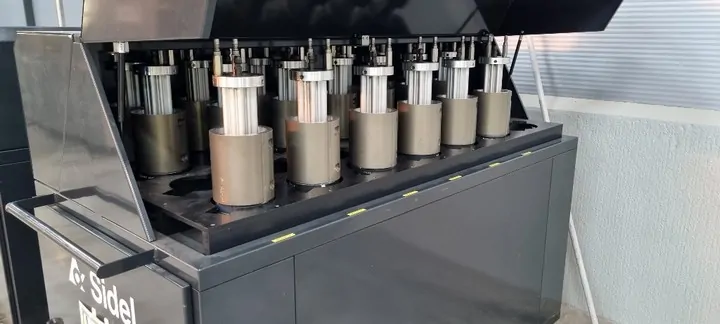

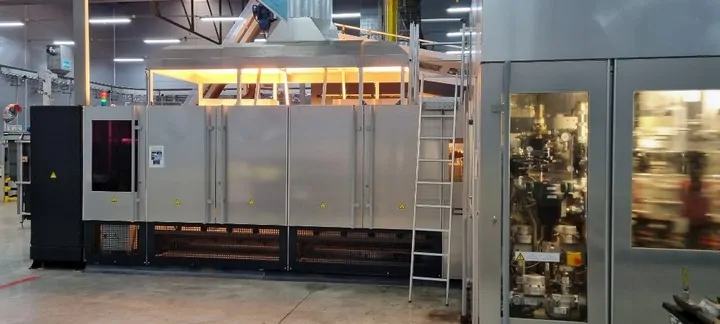

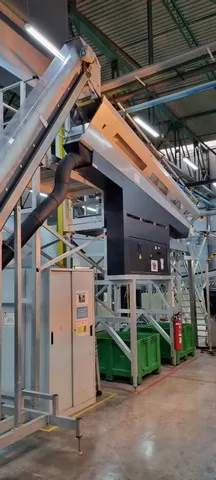

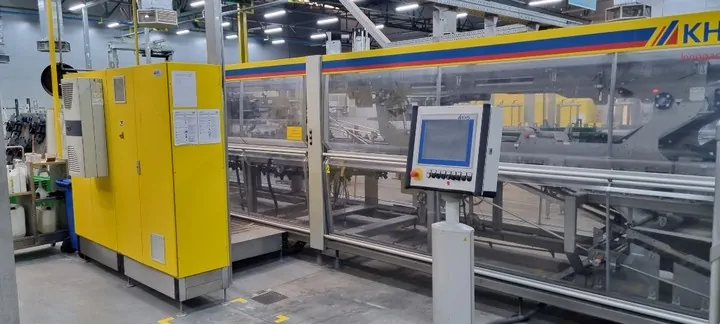

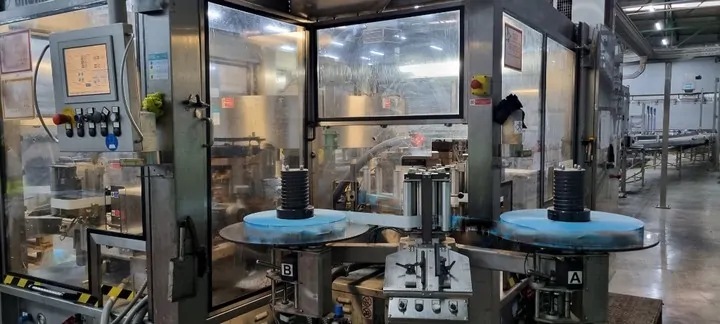

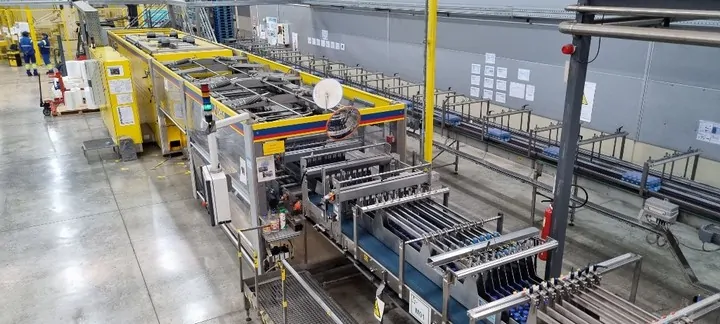

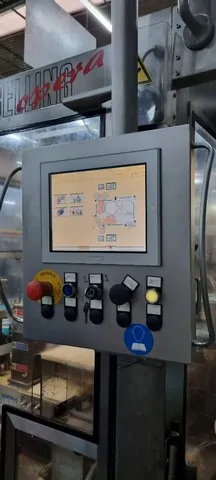

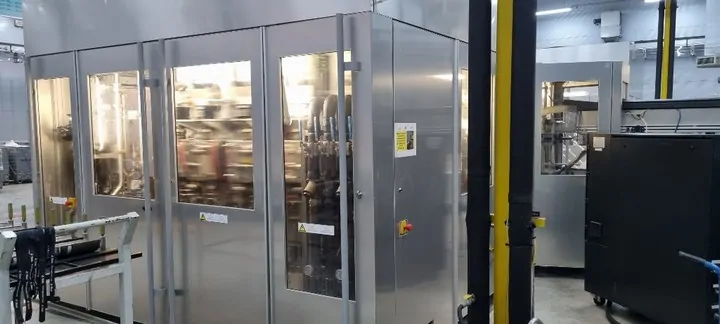

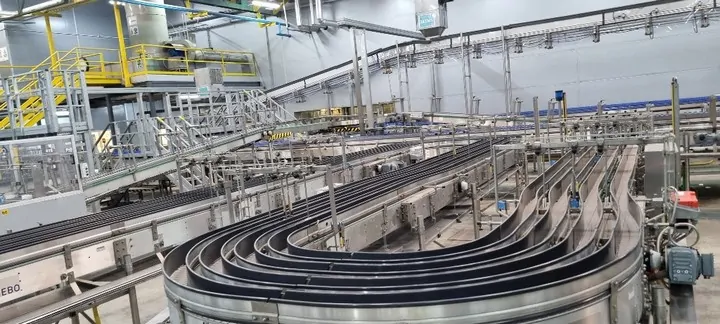

Used Complete Aseptic Bottling Line 40.000 bph: Capacity: up to 40,000 BPH by 0.5 LTRS / 28,000 BPH by 1.5 LTRS Products: fruit juices Bottle formats: 0.2 LTRS, 0.5 LTRS, 1.5 LTRS, 1.75 LTRS YEAR: 2011 SIDEL SBO 20 Universal PET blowing machine Composed of: preform tipper preform hopper, unscrambler and infeed rail Sidel ARS system HP air low consumption Eco2 oven with 20 heating modules for 38 neck blowing station for 20 quick change shell molds Compressor ABC 4HP-4-LT complete but without cooling tower moulds are not included 2. Sidel Rafale air conveyor system from exit Sidel blower to entry Sidel aseptic filler with curves etc length approx. 250 meters also with full automation & drive and electrical panels. 3. Sidel Sensofill FMA 80/24K BS 13 aseptic tribloc dual aseptic rinsers filler with 80 filling valves Arol 24K capper with 24 capping heads aseptic UBS 2x caps feeder Aidlin 24 sterile steam generator 4. Heuft controller x2 5. Laser coder Videojet 6. Labelling machine SACMI Opera 400RF 257/SR for OPP wrap around label with bottle formats tools. 7. Labels Inspection HEUFT labels 360° with ejector 8. Automatic shrink-wrapping machine KHS Kisters PSP 050B for film and tray for shrinked packs 9. Automatic carton packer KHS Kisters WP A-H for wraparound carton 10. Sidel Sorbal complete conveying system for the bottles and packs with accumulation tables + Ecolab lubrification and full automation 11. Palletizer Sidel Roboclumn for palletizing packs and transfer to the wrapping station by pallet conveyors. 12. Automatic pallets wrapping machine Robopack Genesis HS T71 with accumulation on pallets conveyors at exit of the line. 13. Pallets labeller Markem 14. CIP room equipment 15. Pre-treatment room: Tetra Alsafe Tetra Therm aseptic drink Tetra Alblend Solids dissolver Tetra Almix 4 tanks Pierre Guérin 2 pumps for syrup transfer tank for minorities
