Used Complete PET Bottling Line Still Water 18.000 bph

Technical description

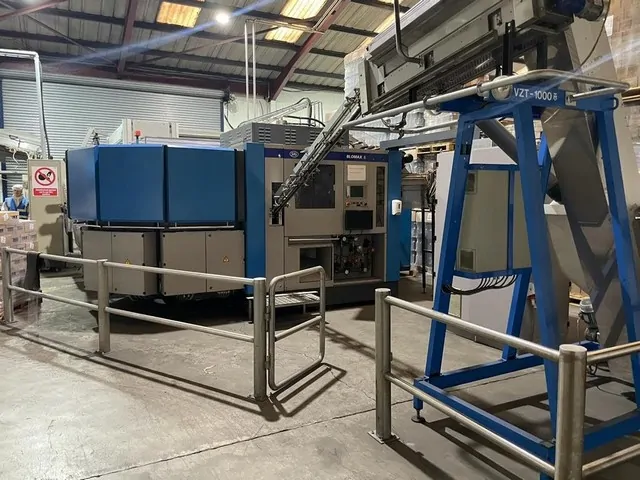

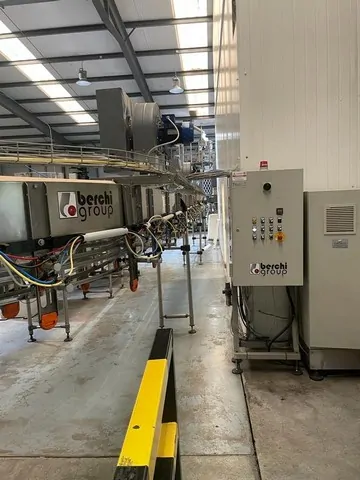

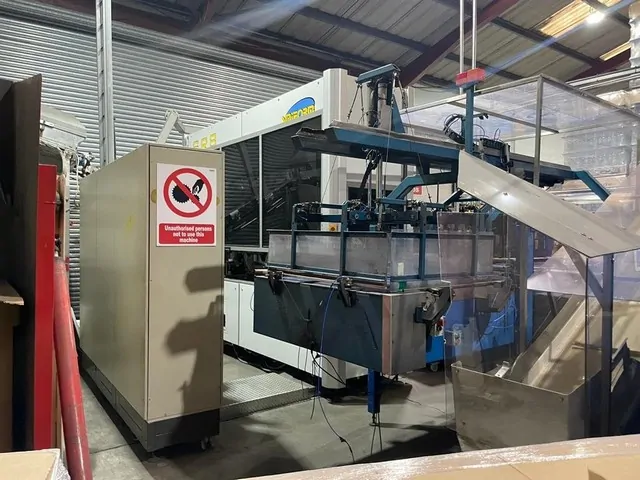

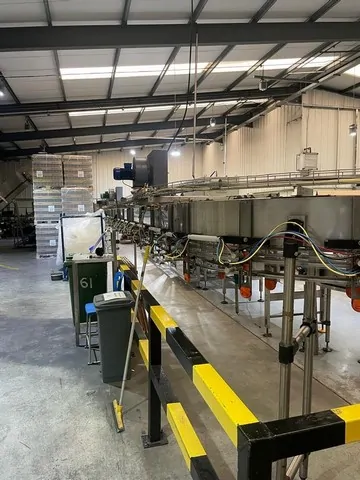

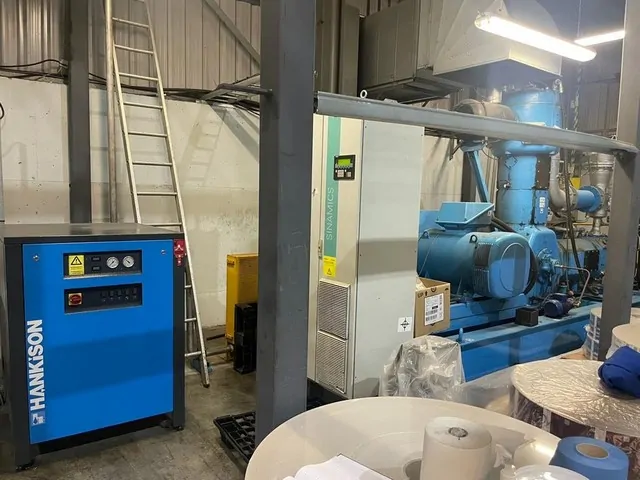

Used Complete PET Bottling Line Still Water 18.000 bph: Speed: 18,000 bph Brands: krones, khs, berchi Year: 2002, 2004, 2008 Beverages filled: still mineral water Bottle sizes: 250 ml, 500 ml, 600 ml, 750 ml, 1.5 l, 2.0 l Cap types: pco 1810, sports cap Main components of the pet line: Khs blomax 6 series pet blowing machine (2002) Smi sr8 pet blowing machine (2000) Number of cavities: 8 Nova frigo chiller for both khs and smi pet blowers Ateliers francois hp compressor (2008) Lanfranchi pet bottle unscrambler (2004) Air conveyor system Monobloc berchi 60/50/15 (2004) Rinser with 60 grippers Filler with 50 valves Capper with 15 heads Cip (clean in place) system ghirardi palo (2004) Krones labeling machine (2004) Bottle conveyor system with accumulation table up to the labeler Fmt antares palletizer (low level) year: 2018 Automatic layer-pad deposit system with floor-mounted storage unit Empty pallets storage unit Pallets handling on belt conveyors Loto system 15″ touch screen Atlanta omega pallet wrapper (rotary ring type) 5.7″ touch screen operating panel with 7 programs Adjustable rotation speed facilitated by frequency inverter: max 65 rpm Standard wrapping height: 2000 mm Adjustable spool carriage speed facilitated by inverter: from 1.3 to 5.4 m/min Total installed power: 8 kw Standard voltage: 400 v – 50/60 hz – 3 ph + n + t Electrical and motor protection system: ip 54 Pneumatic pressure: 6 bar Output capacity: 110 pallets per hour Spare parts and complete machine documentation available.
